ZGB-II drawer type flame arrester
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
ZGB-II drawer fire arrester, also known as ZH-I drawer fire arrester, is a new type of corrugated oil storage tank fire arrester, testing in line with the provisions of the national standard GB5908-86.
Structural characteristics
1. Reasonable structure, light weight and corrosion resistance.
2. Easy to repair and install, do not disassemble the breathing valve when checking.
3. The core of the flame arrester is made of stainless steel, corrosion-resistant and easy to clean.
performance
1, explosion-proof performance is qualified (Grade A a), continuous 13 times the performance test can stop fire every time.
2. The resistance to burn is qualified, and the burn proof test is 1 hours without tempering.
3. Water pressure test qualified
Scope of application
1. ZGB-II drawer flame arrester is suitable for storing Class A oils whose flash point is lower than 28 C and Class B oils whose flash point is lower than 60 C, such as gasoline, kerosene, light diesel oil, benzene, toluene, crude oil, etc.
2, easy to use breathing valve matching, also can be used alone.
3. Internal floating roof tank ventilation pipe.
4, gas station underground oil tank ventilation pipe

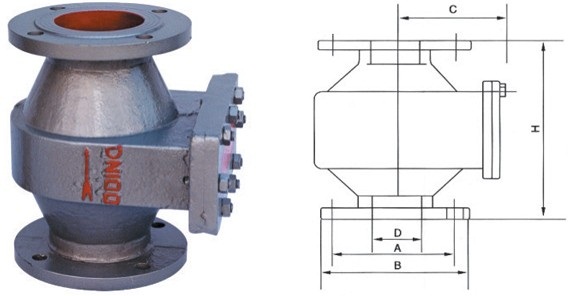

構(gòu)圖.jpg)
規(guī)格 | 尺寸 | ||||
D | A | B | C | H | |
DN50 | 50 | 110 | 140 | 114 | 210 |
DN100 | 100 | 170 | 205 | 150 | 284 |
DN150 | 150 | 225 | 260 | 185 | 375 |
DN200 | 200 | 280 | 315 | 230 | 445 |
DN250 | 250 | 335 | 370 | 276 | 500 |
DN300 | 300 | 395 | 435 | 276 | 500 |
DN400 | 400 | 495 | 535 | 335 | 520 |
DN500 | 500 | 600 | 640 | 400 | 550 |
